Our Products and Services

Our core expertise focuses on the development and manufacturing of star sensors, including dedicated test infrastructure like star simulators. In addition, we offer a range of complementary products and services. Datasheets for all products will follow soon, feel free to contact us if you have any questions about our products and services.

All shown prices are the base list prices before applicable taxes or discounts and may depend on customer requirements.

Star Sensors

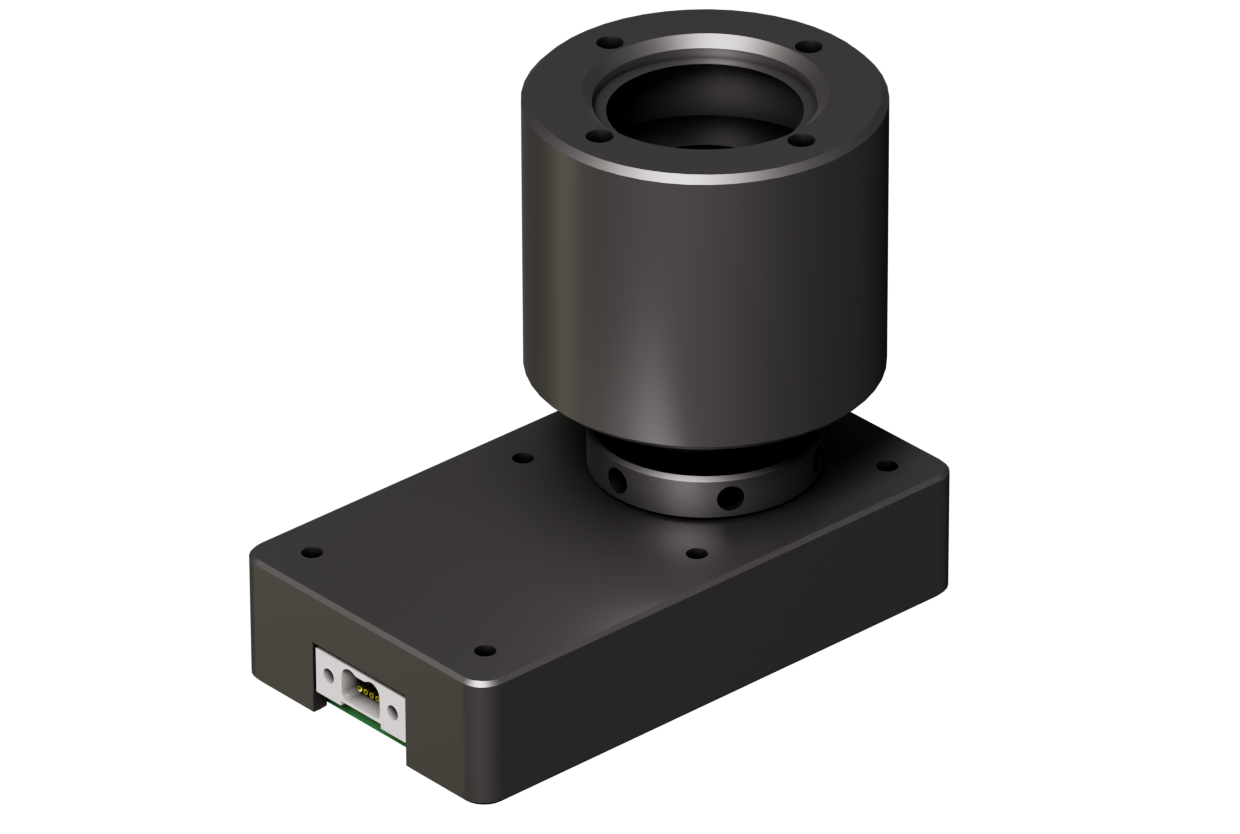

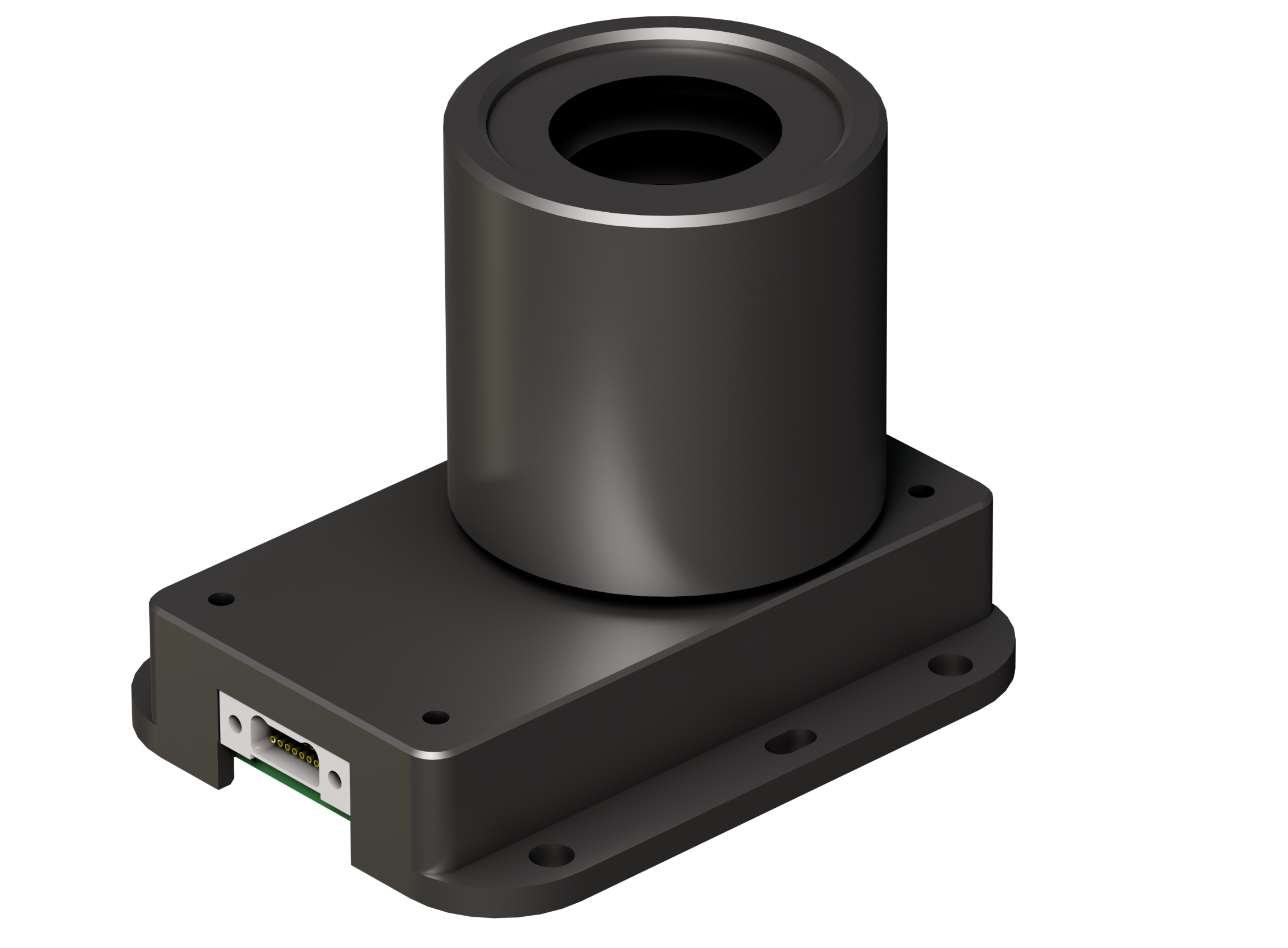

Nano Star Sensor

10,000 €

Miniaturized design, small size and low mass:only 26 x 42 x 46 mm³
Cost-efficient: ideal for budget-sensitive missions
Middle-range accuracy: <0.05° on all axes
Performance optimized for CubeSat platform

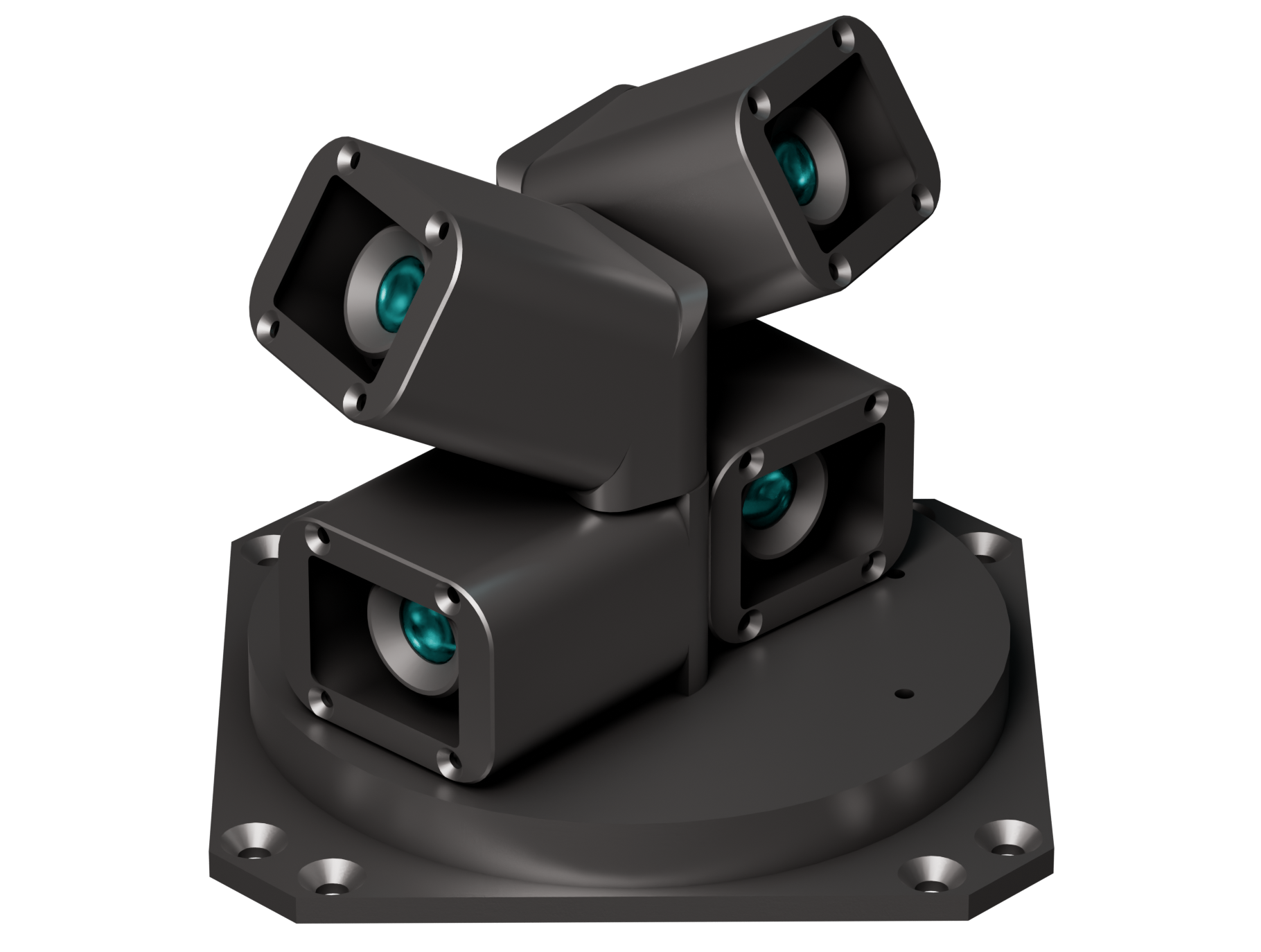

Multi-Head Star Sensor

30,000 € *

Same measurement performance as Nano
Higher data availability during large-angle maneuvers
up to six sensors for independent measurements
Blinded sensors are automatically excluded from processing
Automatic redundancy management

* base price with 4 sensor heads

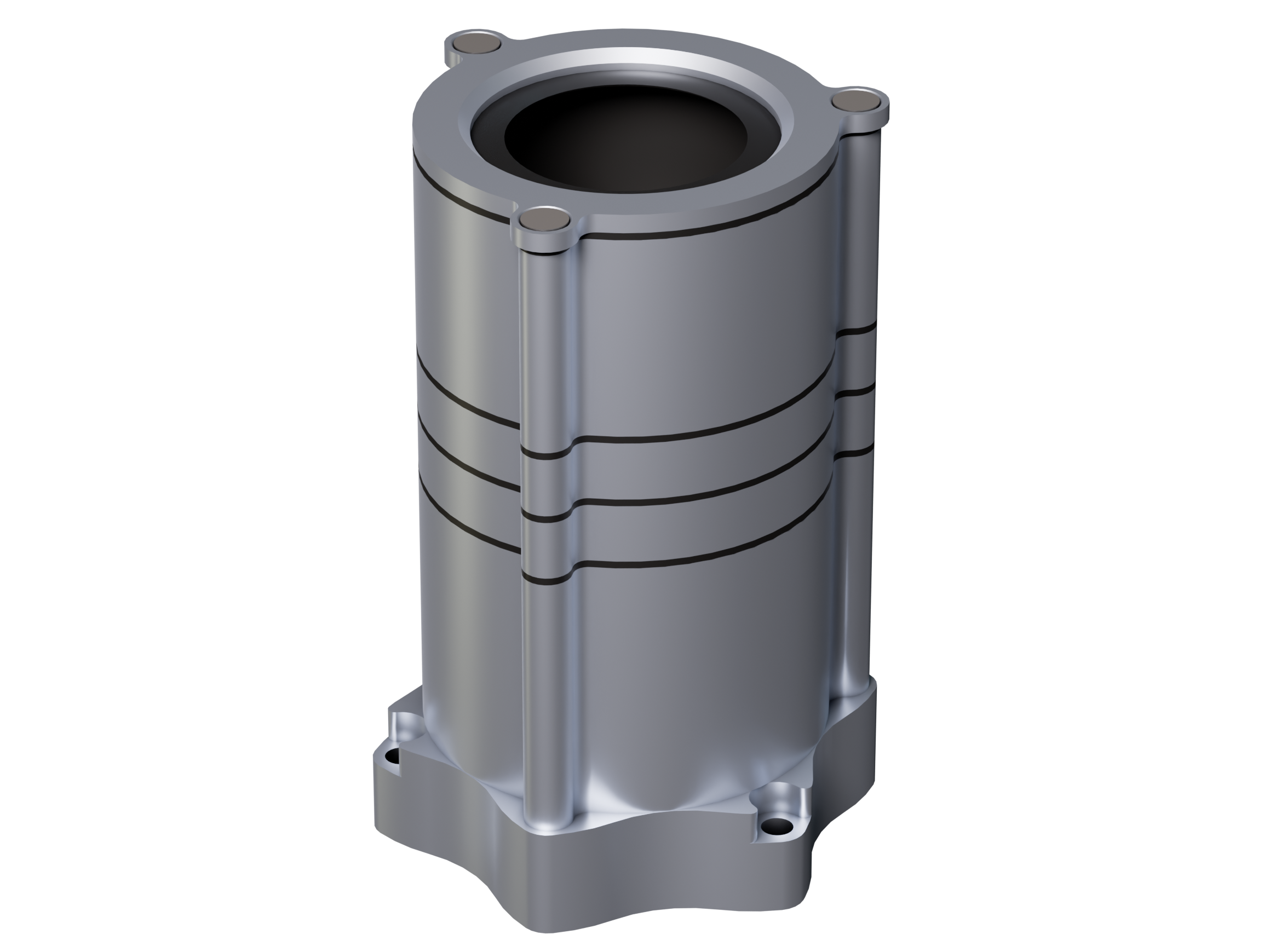

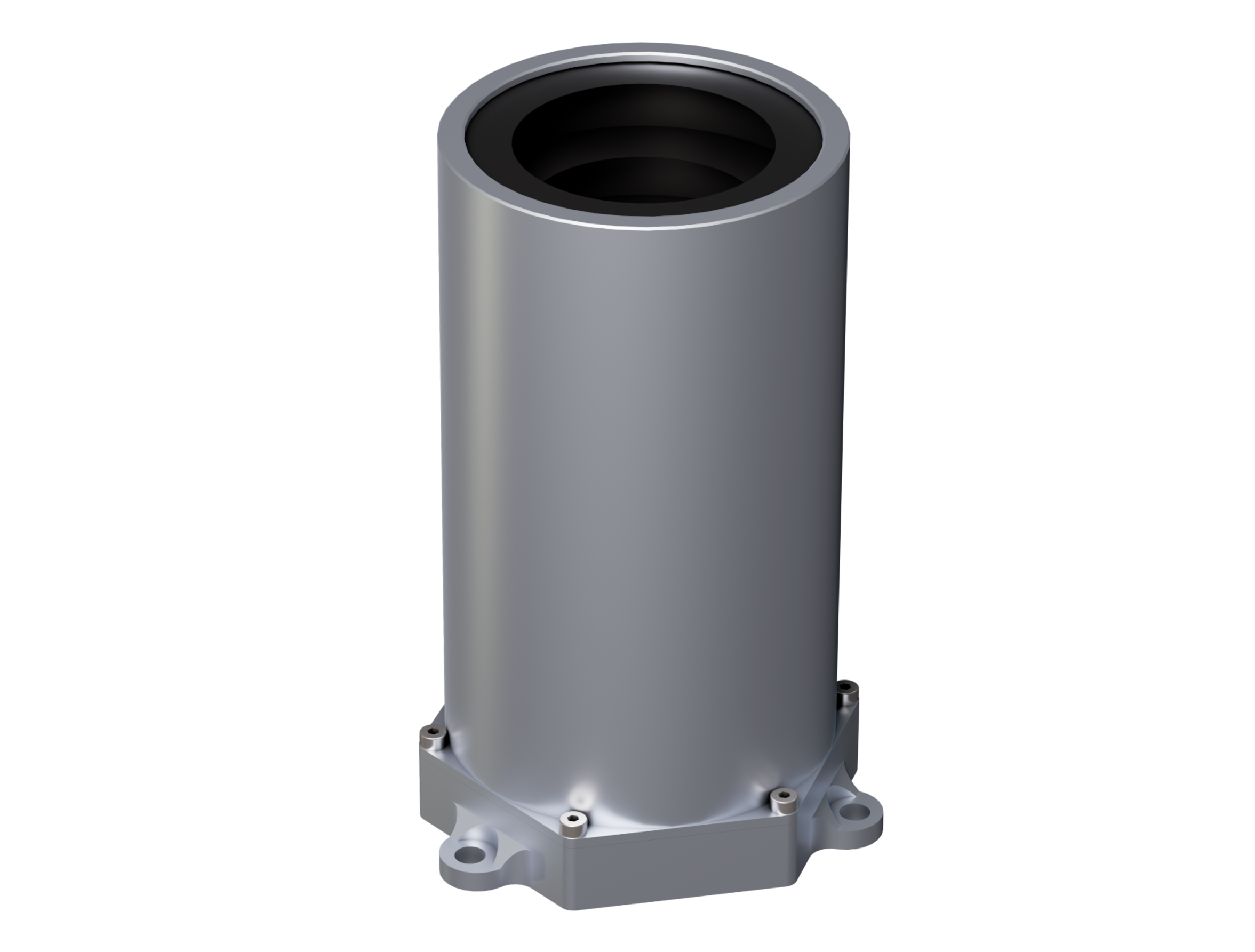

Micro Star Sensor

35,000 €

Improved accuracy for precise attitude determination: <0.02° on all axes
High data rate up to 4 Hz
Enhanced stray light protection for reliable performance
Small size: <Ø70mm x 100mm

Star Sensor Options & Ground Support Equipment

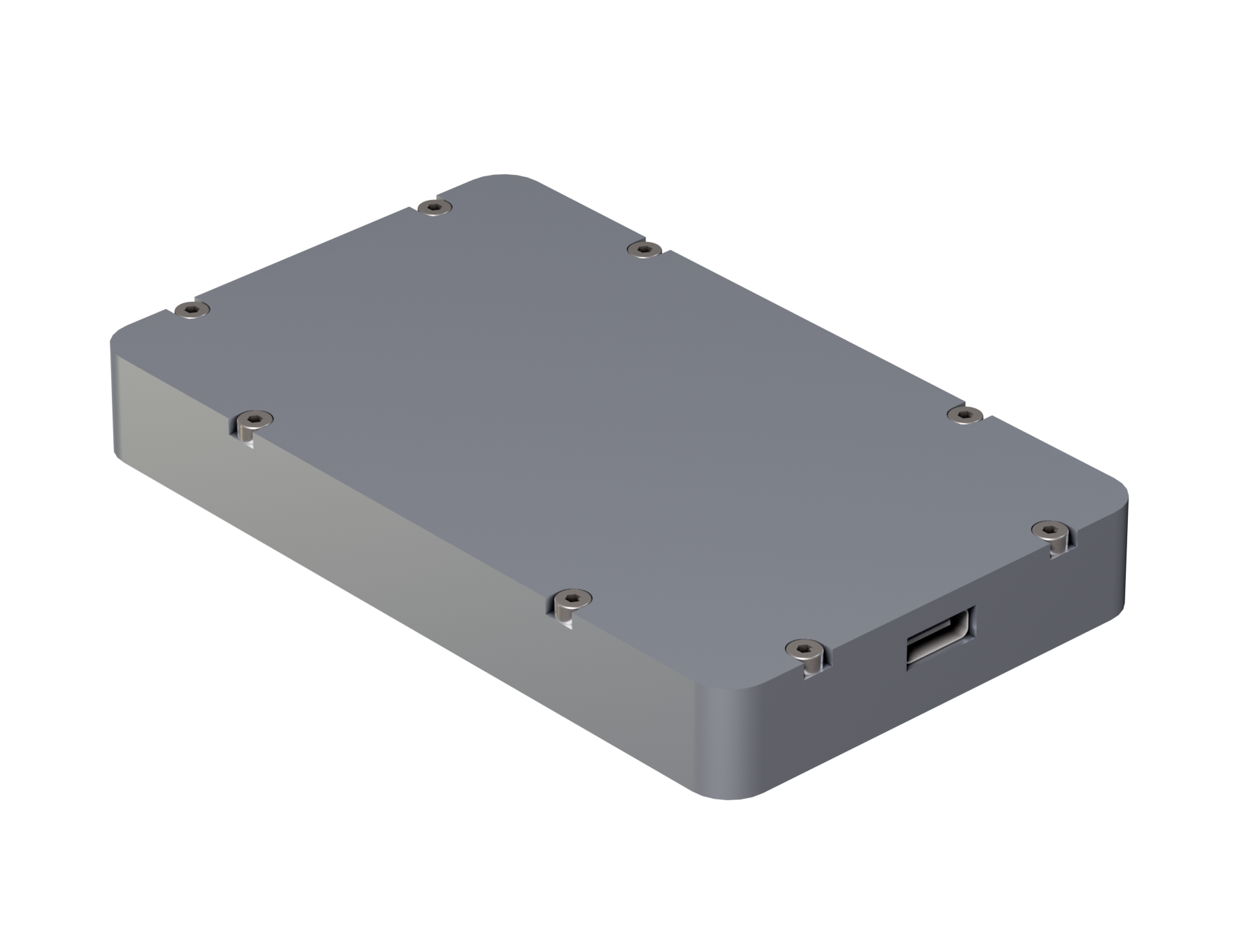

EGSE Box & Software

5,000 €

USB connection to PC
Control and visualization software
Measurement data analysis software module
Firmware and catalogue update

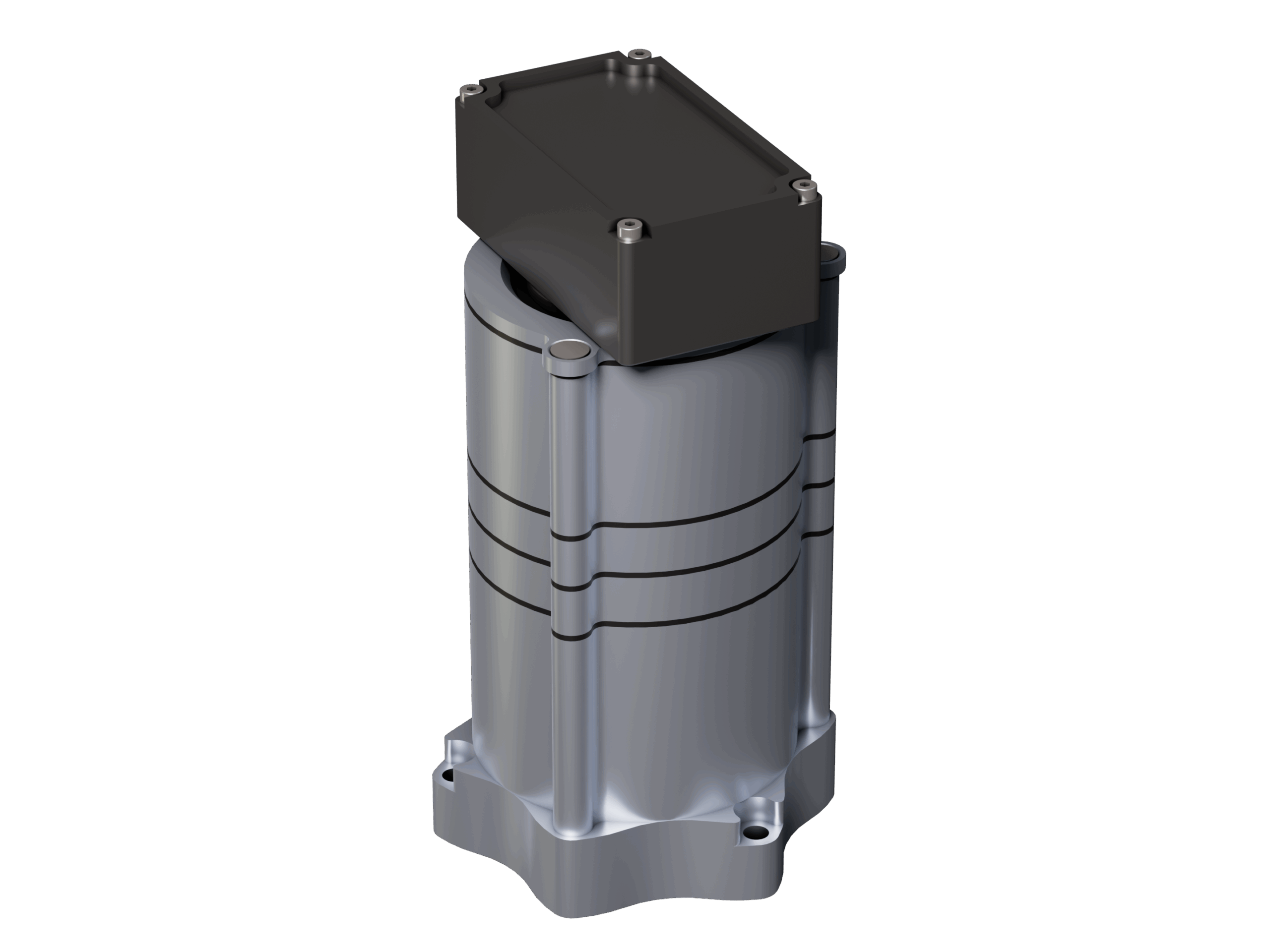

Star Field Simulator

35,000 €

Simulation of the Sky for hardware-in-the-loop functional testing
Small size hardware
Simple mechanical connection to star sensor
USB-C DP or Micro-HDMI interface
Battery-powered stand-alone operation for air bearing table possible with optional miniature PC

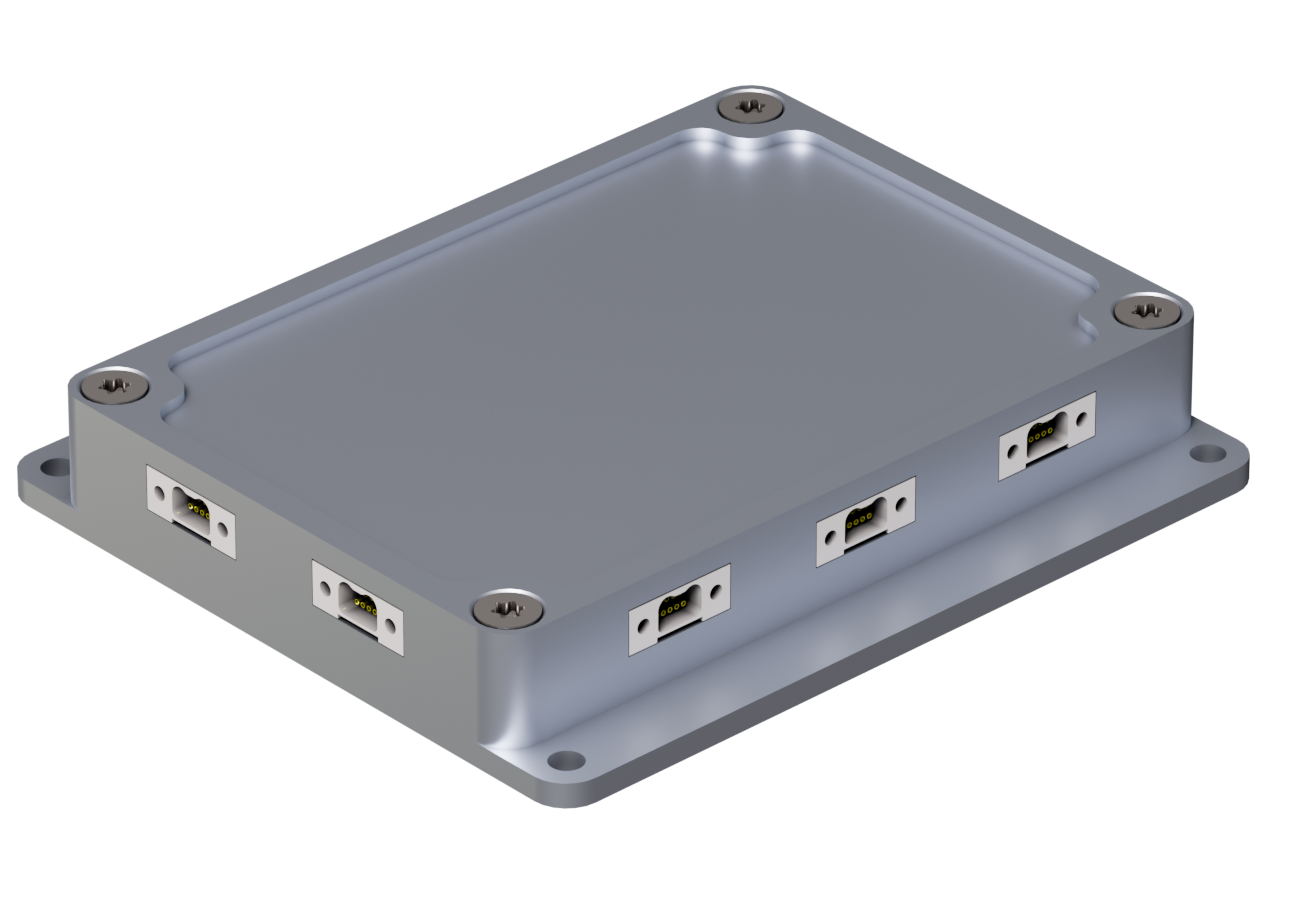

Control Box Option

10,000 €

Automatic redundancy and availability management
Supports connection of up to 6 sensors
Integrated data fusion for improved reliability and precision
Multiple interface options available

Other ADCS components

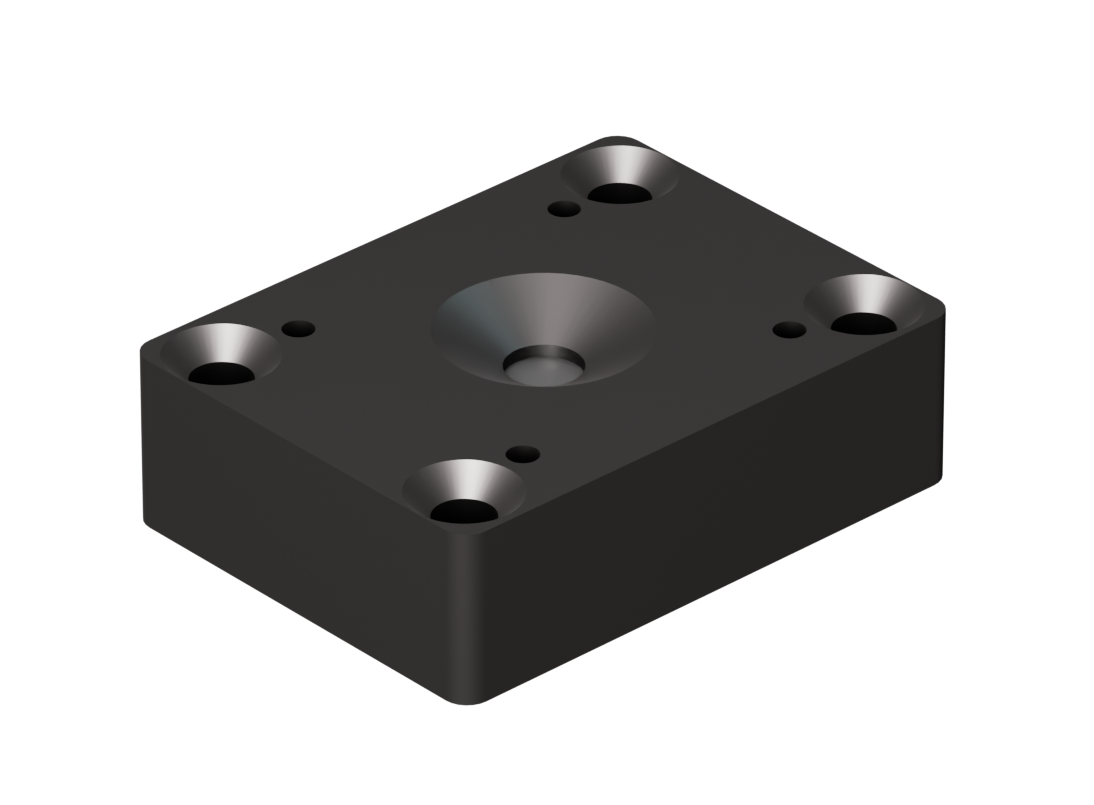

Sun Sensor

2,500 €

Small size: 7x18x24 mm³, 12g
Field of View: 92°x92°
Middle range accuracy: <0.2° (calibrated)
CAN 2.0B or I2C, UART interface

Earth Horizon Sensor

6,000 €

Observation in VIS and IR range
Earch pointing with accuracy 1°
Small size and mass: 28x28x53 mm³, 32g

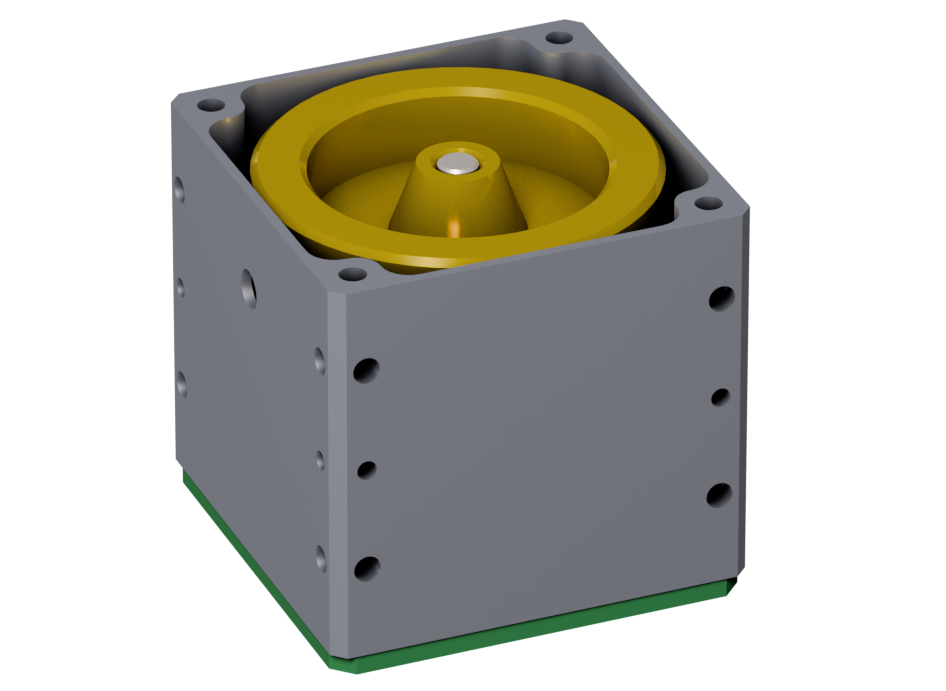

Reaction wheel

6,000 €

Small size and mass: 32 x 32 x 32 mm³, 100 g
Mountable on all the axles
Max. torque: 2 Nm
Rated momentum: 5 mNms
CAN 2.0B interface

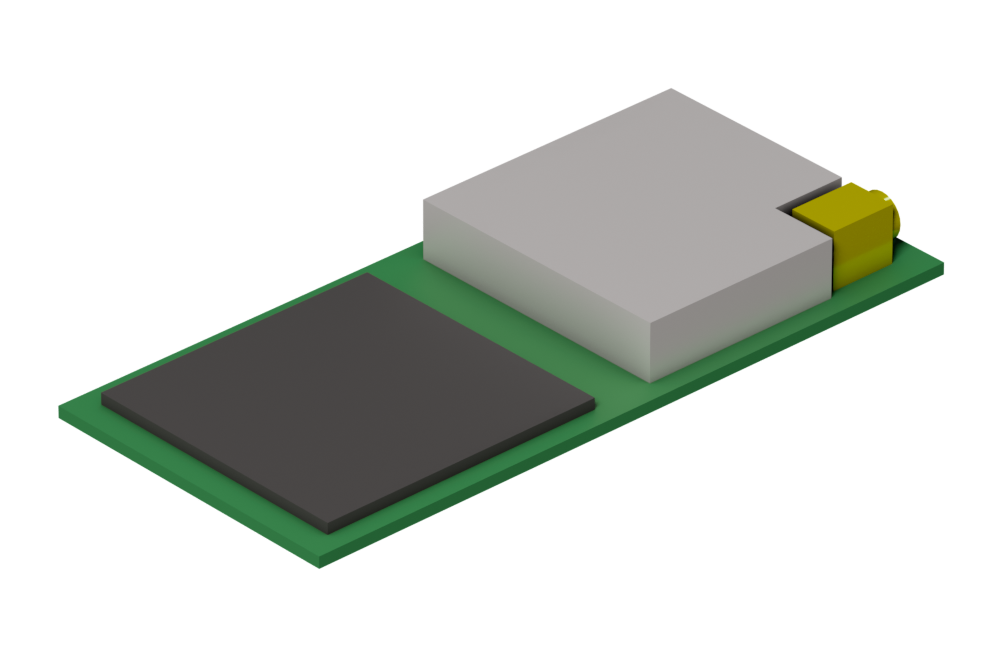

UHF-/VHF-Transceiver

6,000 €

Small size: 6x30x62 mm³
Module for soldering onto own carrier board
Configurable for UHF or VHF space operations & amateur bands
Output power up to 1.4 W
AX.25 AFSK/GFSK TM & TC modes
APRS digipeater & SSTV-FM modes
Interfaces: CAN 2.0B, UART

Consulting & Engineering Services

on request

Satellite and Ground segment subsystem development
Embedded/PC-based software for small satellite missions
End-to-End solutions for your satellite mission or payload

Others

UHF-/VHF-Transceiver

6,000 €

Small size: 6x30x62 mm³
Module for soldering onto own carrier board
Configurable for UHF or VHF space operations & amateur bands
Output power up to 1.4 W
AX.25 AFSK/GFSK TM & TC modes
APRS digipeater & SSTV-FM modes
Interfaces: CAN 2.0B, UART

Consulting & Engineering Services

on request

Satellite and Ground segment subsystem development
Embedded/PC-based software for small satellite missions
End-to-End solutions for your satellite mission or payload

Interested in our products and services ?

Feel free to contact us today!
